Description

The fast lane on the information highway
SuperSpeed USB 3.1 supports data transfer rates of up to 10Gbps, extension to 2 Port USB C downstream ports for desktop – PCs, backwards compatible with USB 1.0 / 1.1 / 2.0 / 3.0, Windows 7, Windows 8, Windows 8.1 and Linux kernel.

Easy installation

  1. Turn off PC and disconnect from the mains,
  2. Open side wall,
  3. PCI – E slot make locate or search,
  4. Remove slot cover,
  5. Insert card into the slot and secure it with a screw,
  6. Side cover from the calculator Remount,
  7. Connect power cord and turn on computer,
  8. Insert driver CD and run through the installation routine (if necessary, start manually).

Specifications

  • Material: metal (galvanized steel sheet)
  • Data Transfer Rate: 10Gbps
  • Input Interface: PCI E4X
  • Matching interfaces: PCI E4X, PCI E8X, PCI-E16X
  • Operating System: Windows 7/8 / 8.1 & Linux Kernel.

Care
For maximum performance, connected devices should not exceed a combined power of 900mA. Otherwise, the output current is unstable or completely interrupted.

We support:

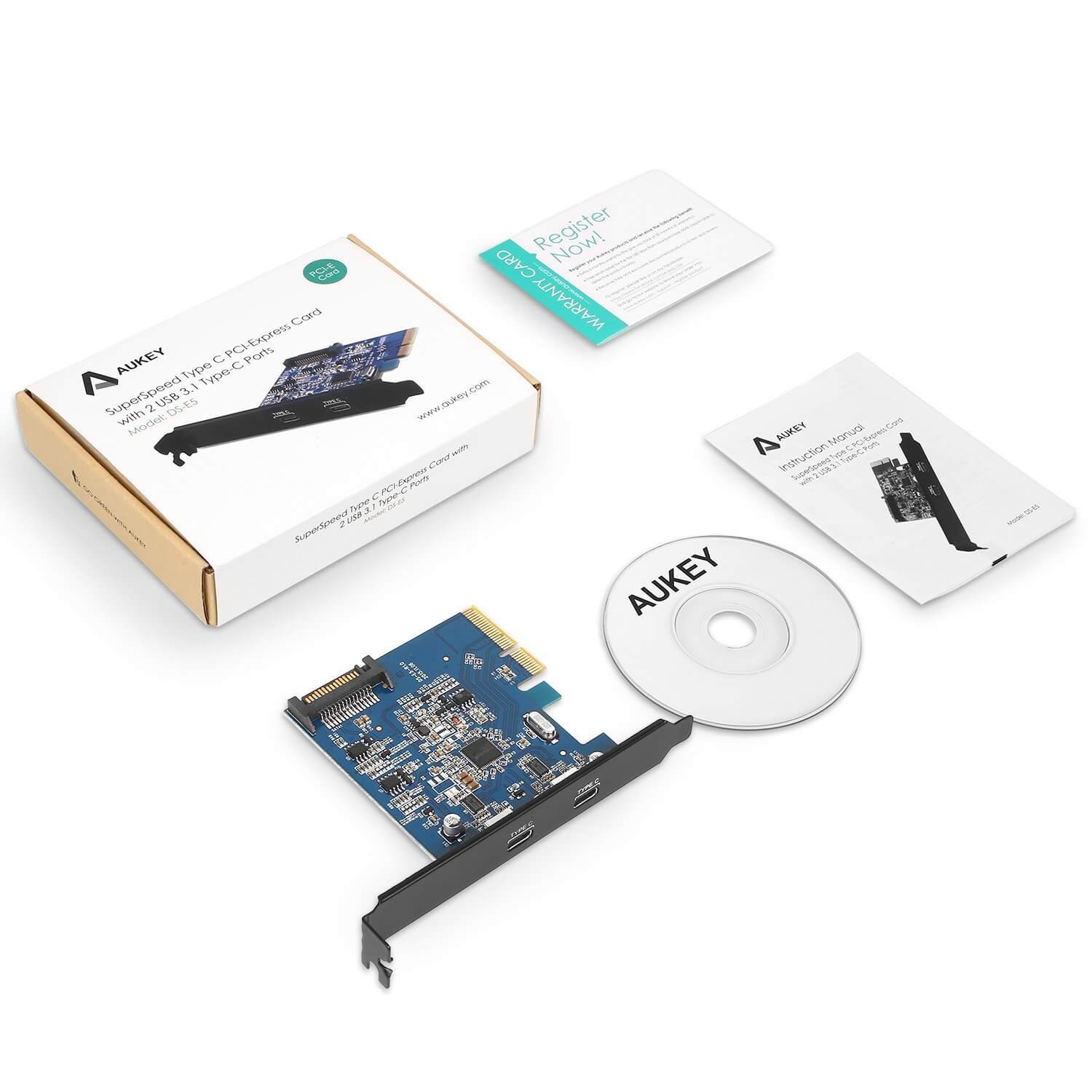

  • AUKEY DS-E5 2-Port USB 3.1 Type-C PCI Express card,
  • Driver CD,
  • User Manual,
  • 24 months worry-free warranty and friendly customer service.
