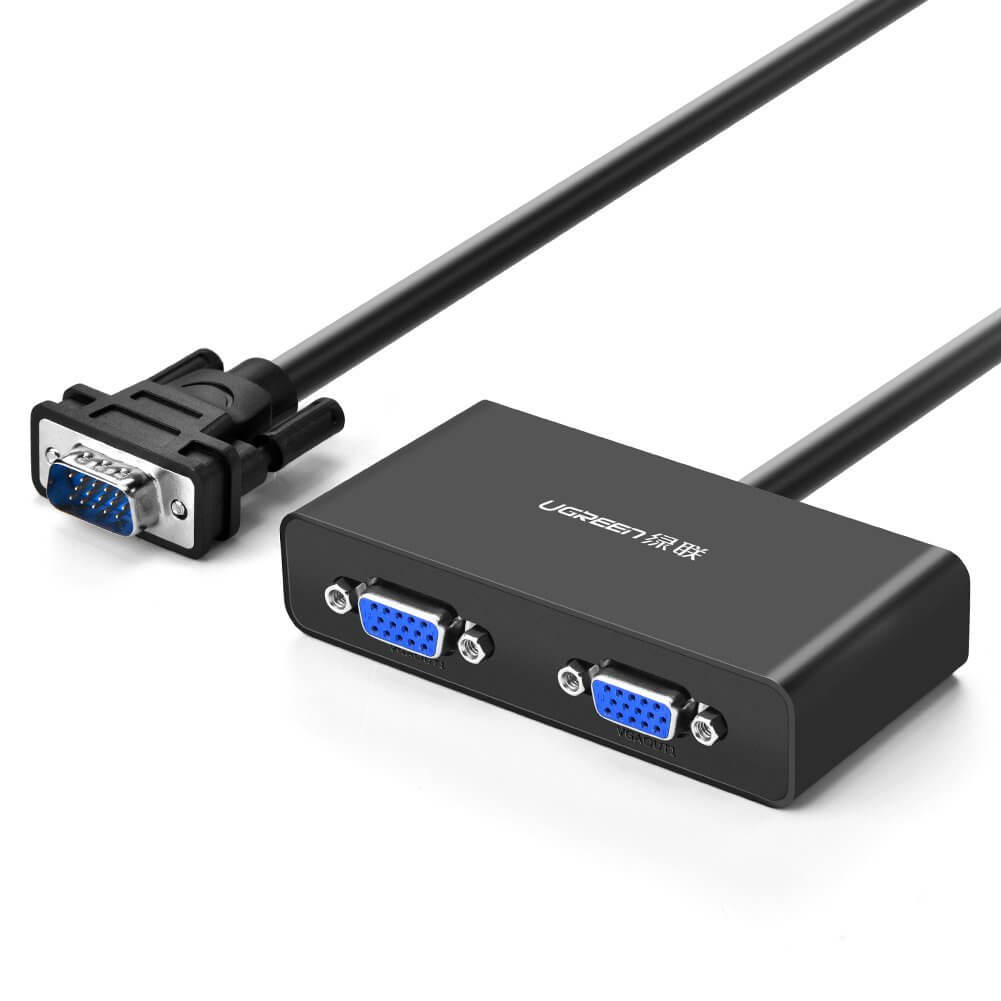

UGREEN VGA Splitter – VGA Male to 2 Female Video Splitter for PC Monitor

Description

Description:

Ugreen VGA splitter allows you to simultaneously distribute VGA video signal from a single source to 2 VGA monitors, projectors or displays at the same time, delivering vivid picture quality. It offers an inexpensive solution for training, exhibition, conference etc.

Specification:

1. Input: VGA 15-pin Male; Output: 2 x VGA 15-pin Female;

2. Support bandwidth up to 250Mhz;

3. Extends transmission distance up to 82ft/25m (with standard copper VGA cable 26AWG, 3+6);

4. VGA output 1 is compatible with DDC, DDC2, DDC2B;

5. Support resolution up to 1920 x1440 @60Hz;

6. Supports VGA, SVGA, XVGA, UXGA and multisync displays;

7. Support Windows XP/Vista/7/8/8.1, Mac OS X, Linux;

8. Dimension: L51.5 x W98 x H22 mm, cable length: 3ft/0.9m.

Notes:

1. It can only distribute signal from one source device (Laptops/Computers) to two displays/monitors/HDTVs;

2. It can only duplicate the Laptop/computer screen to displays/monitors/HDTVs, but not extend.

About the extra power:

Power for the splitter usually comes from the VGA input connector, but some VGA connectors do not supply power.  If the blue light on the splitter does not illuminate, connect a USB cable from the splitter’s USB connector to your PC or to a USB compatible charger such as a smartphone charger.

About the shiftment of the image:

On some monitors the image may shift a small amount when driven by the VGA splitter.  If this occurs, adjust image position using the monitor’s controls.  After adjustment, the monitor should not require positioning again.

Package Contents:

Ugreen VGA Monitor Y Splitter Cable HD15 M/2xF 3ft/1m x1
