Description

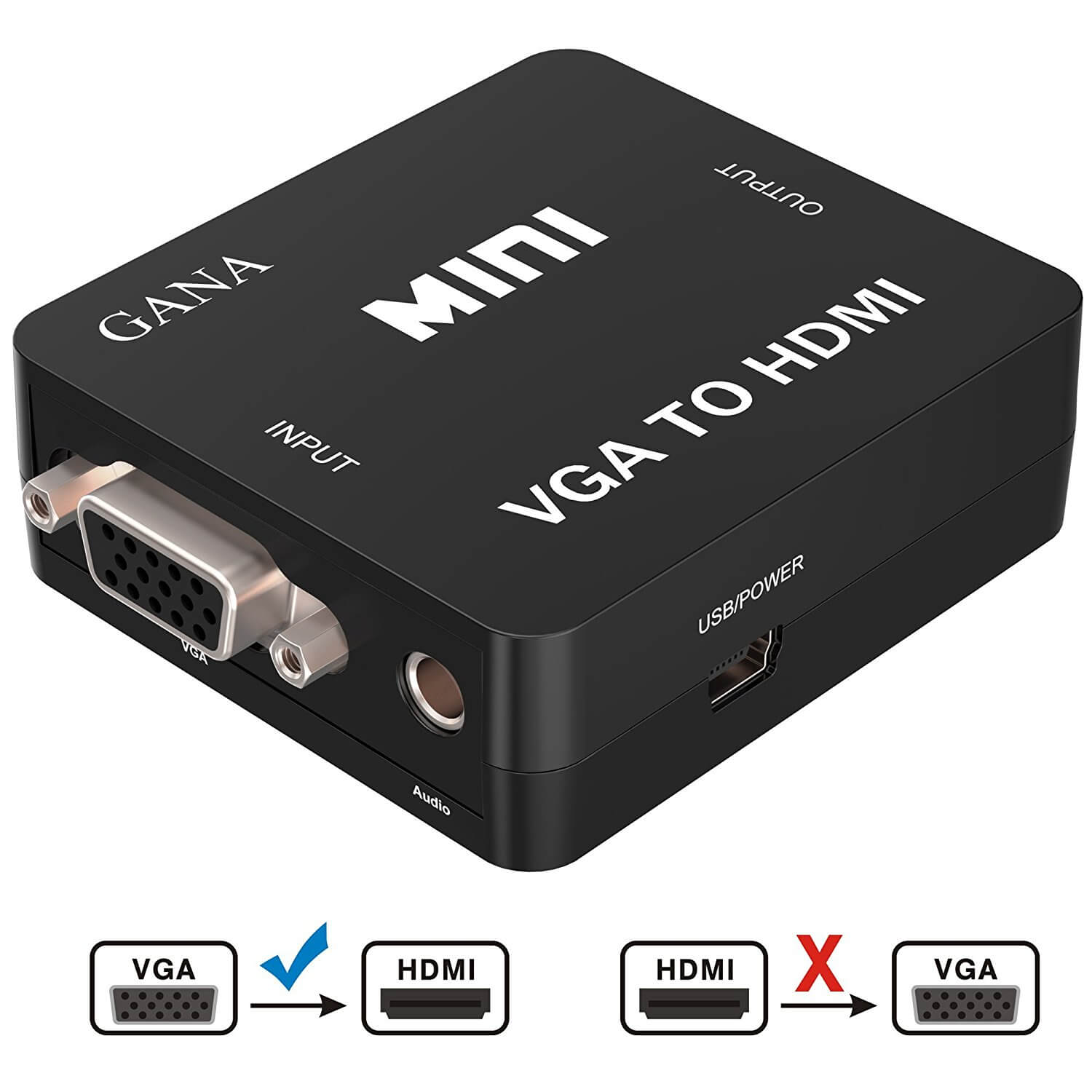

VGA to HDMI Adapter
This VGA to HDMI adapter converts analog signals into digital signals from VGA port HDMI port to allow PC users to show their image not only on the PC monitor, but also on TV to experience large screen for movie and TV watching, to enjoy the feeling of home-build cinema and video games with friends and family members.
VGA port can only transmit video signals. HDMI port can transmit both video and audio signals. One 3.5mm audio cable is included to connect your source device with this adapter to transmit audio signals.
Specifications:
VGA Input: Support up to SXGA/SGA/UGA (50/60/75HZ)
Audio Input: 3.5mm audio
HDMI resolution: Support up to 1080p, same format as input
Max transmission bandwidth: 5.1Gbps
Input Video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TTL)
Output cable distance: ≤15m(49ft) AWG26 HDMI standard cable
(Note: within a range of 10m/32ft will be better depend on the quality of your HDMI cable)
Max working current: 600mA
USB Power adapter: DC5V/1A
Operating Temperature range: (-15 to +55℃)
Package Includes:
–Main unit :VGA to HDMI adapter *1pcs
–USB power cable*1 pcs
–USER Manual*1pcs
–3.5mm Audio Cable
Note:
VGA/ D-SUB to HDMI converter just support VGA signal input and HDMI signal output.
