Description

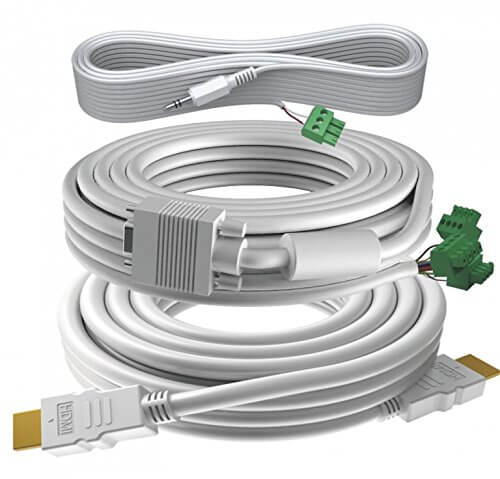

Vision TC3-PK5MCABLES – VGA cables (VGA (D-Sub), VGA (D-Sub), Male, Male/Female, Silver, White)

1 x VGA

White, Ferrite core to stop RF interference. A moulded connector on one end, and a male phoenix connector on the other end which can be plugged directly into the rear of module. Gold-plated male to male HD15 (15 pin) connector. Sheath PVC, outer diameter: 8.0 mm, Conductor thickness: 28AWG, Drain wire laid between aluminum mylar and braid, Al-Mg alloy wire overall, >65% coverage braided shield. Impedance: at 10MHz, 75Ω (coaxial cable), Resistance 20℃(Ω/1000m) 237.25.

1 x 3.5mm Minijack

High-grade white installation cable. A moulded connector on one end, and a male phoenix connector on the other end which can be plugged directly into the rear of a Techconnect faceplate module.

1 x HDMI

White, 4K compliant, High-Speed (Category 2) with Ethernet, HDMI 1.4, Gold-plated HDMI-A connectors, Sheath: outer diameter: 9.5mm, Conductor thickness: ≤ 5 m 28 AWG (American Wire Gauge) / 10 m 26 AWG / 15 m 24 AWG. Sheath outer diameter: ≤ 5 m 7.3 mm (≤16.4 ft 0.29″) / 10 m 8.0 mm (32.81 ft 0.31″) / 15 m 9.5 mm (49.21 ft 0.37″)

Features:

  • Audio connector type:3.5 mm (1/8″)
  • Cable diameter:8 mm
  • Cable length:5 m
  • Certification:RoHS, WEEE, CE/EMC, FCC
  • Colour of product:White
  • Connector 1:VGA (D-Sub)
  • Connector 1 gender:Male
  • Connector 2:VGA (D-Sub)
  • Connector 2 gender:Male/Female
  • Connector contacts plating:Silver
  • Impedance:75 Ω
  • Package depth:25 cm
  • Package height:5.5 cm
  • Package weight:1000 kg
  • Package width:25 cm
  • RoHS compliance:Yes
